BROOKLYN NAVY YARD CULTURAL CENTER - WORK IN PROGRESS
The Brooklyn Navy Yard Cultural Center inhabits a landscape saturated with industrial memory. For over a century it functioned as an engine of naval supremacy, producing vessels that projected American power across the oceans. At the height of the Second World War more than seventy thousand workers gathered here, forming a temporary city of steel, rivets, and discipline. When shipbuilding receded the infrastructure remained, emptied of production yet charged with the aura of making. The East River edge stood silent, a monument to a past economy.
The site did not disappear. It transformed. Warehouses once tuned for battleships were subdivided by garment makers and machinists. Later, creative industries and fabrication labs adapted the sheds again, layering new forms of production onto the old. Each era added circulation, routes of exchange, and a different reading of the Yard’s perimeter. The closed enclave of war became a fragmented patchwork of small industries, then a renewed cluster of innovation.
The Cultural Center is conceived as the latest condenser of this sequence. What was once an inward industrial compound becomes an outward civic field. Workshops open into rehearsal halls. Exhibition platforms overlap with performance spaces. Making and showing, learning and gathering, cohabit without hierarchy. Encounters replace separations.
The architecture resists typological purity. A black box dissolves into a landscape of stages and panoramic rooms. At its crown a suspended glass auditorium frames the skyline as both backdrop and audience. Modular ceilings and mutable rigs anticipate perpetual transformation. Gardens punctuate the perimeter, softening climate and multiplying spaces of assembly. Transparent planes and monumental silver shutters recall the precision of ship sheds while declaring the building as both machine and beacon.
The Cultural Center reclaims the Navy Yard as a place where making is public again. It transforms a historic site of labor into a civic stage, producing not ships but the collective narratives of the contemporary city.
Role - Architectural Designer/ FURNITURE DESIGNER
commercial project | 2025
PROGRAM DESCRIPTION

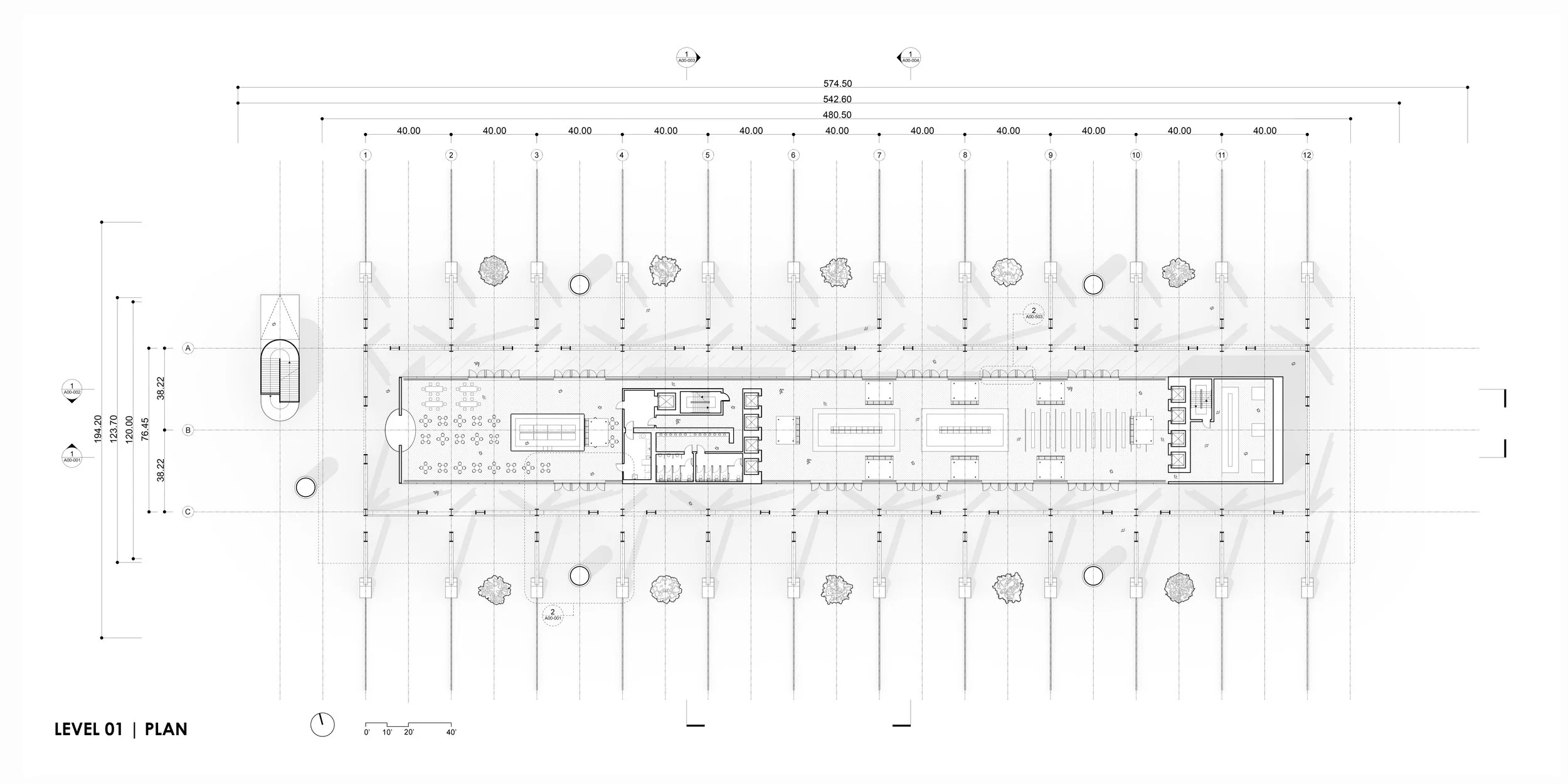

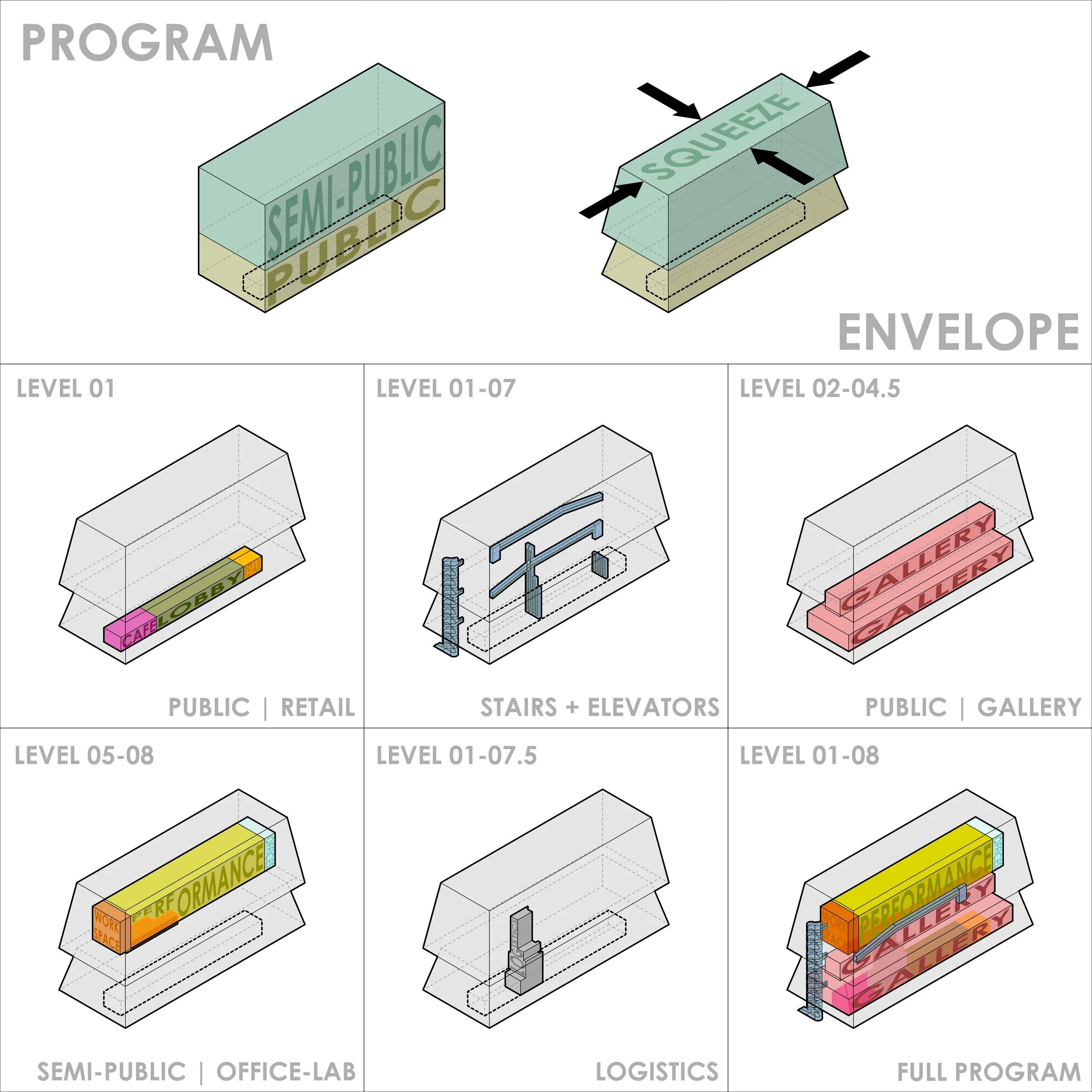

THE BUILDING IS ORGANIZED AS A VERTICAL SEQUENCE OF PUBLIC, CULTURAL, AND PERFORMANCE SPACES, DESIGNED TO INTERWEAVE ART, LANDSCAPE, AND THEATRICALITY WITHIN A SINGLE ARCHITECTURAL FRAME. VISITORS ENTER AT LEVEL 1, WHERE A GRAND LOBBY OPENS INTO A PUBLIC CAFÉ / CAFETERIA THAT CONNECTS TO AN OUTDOOR PLAZA. THIS LEVEL ALSO PROVIDES RETAIL SPACE FOR BOOKS, ART, AND DESIGN OBJECTS, ALONG WITH SUPPORT FACILITIES AND RESTROOMS, ESTABLISHING THE PRIMARY POINT OF ARRIVAL AND ORIENTATION.

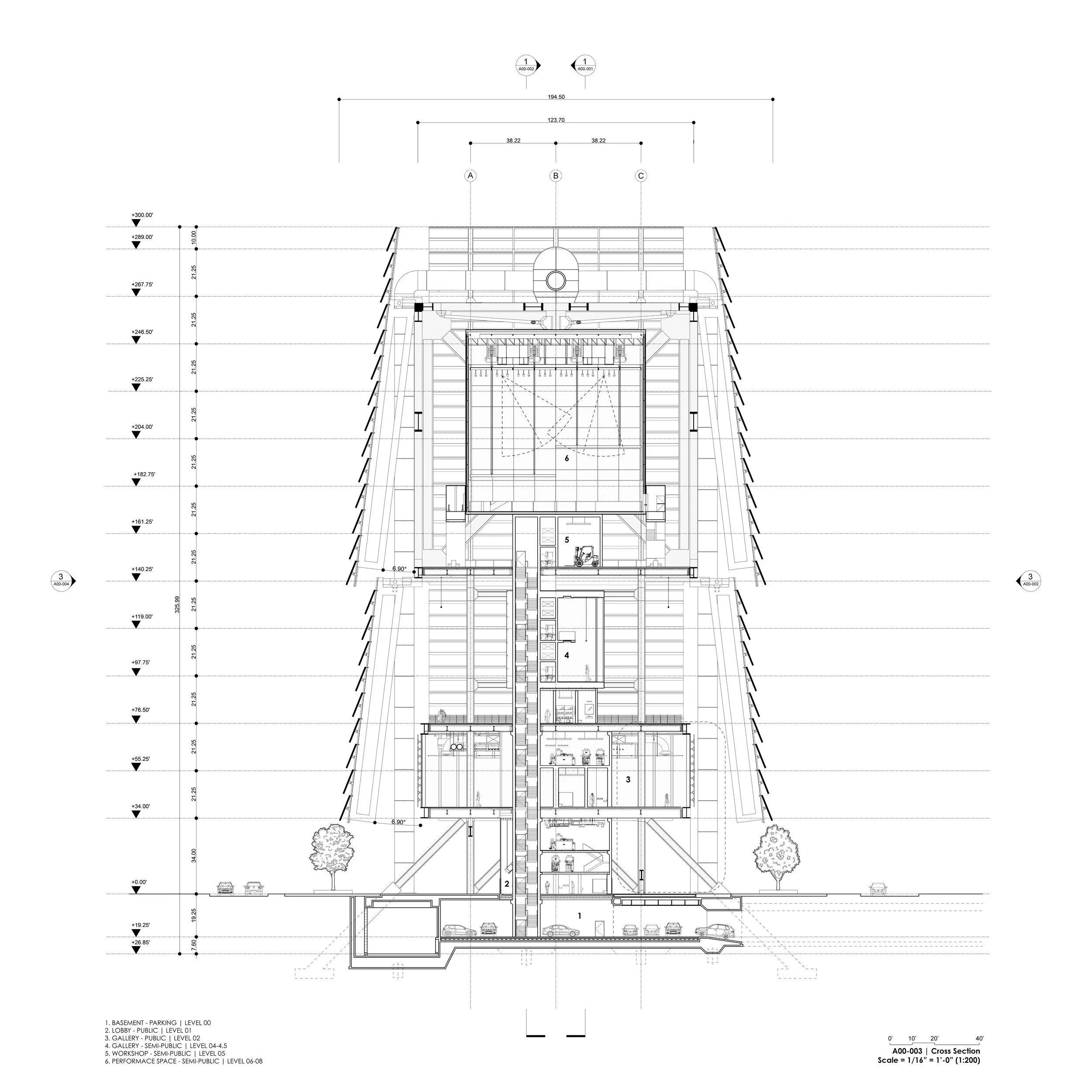

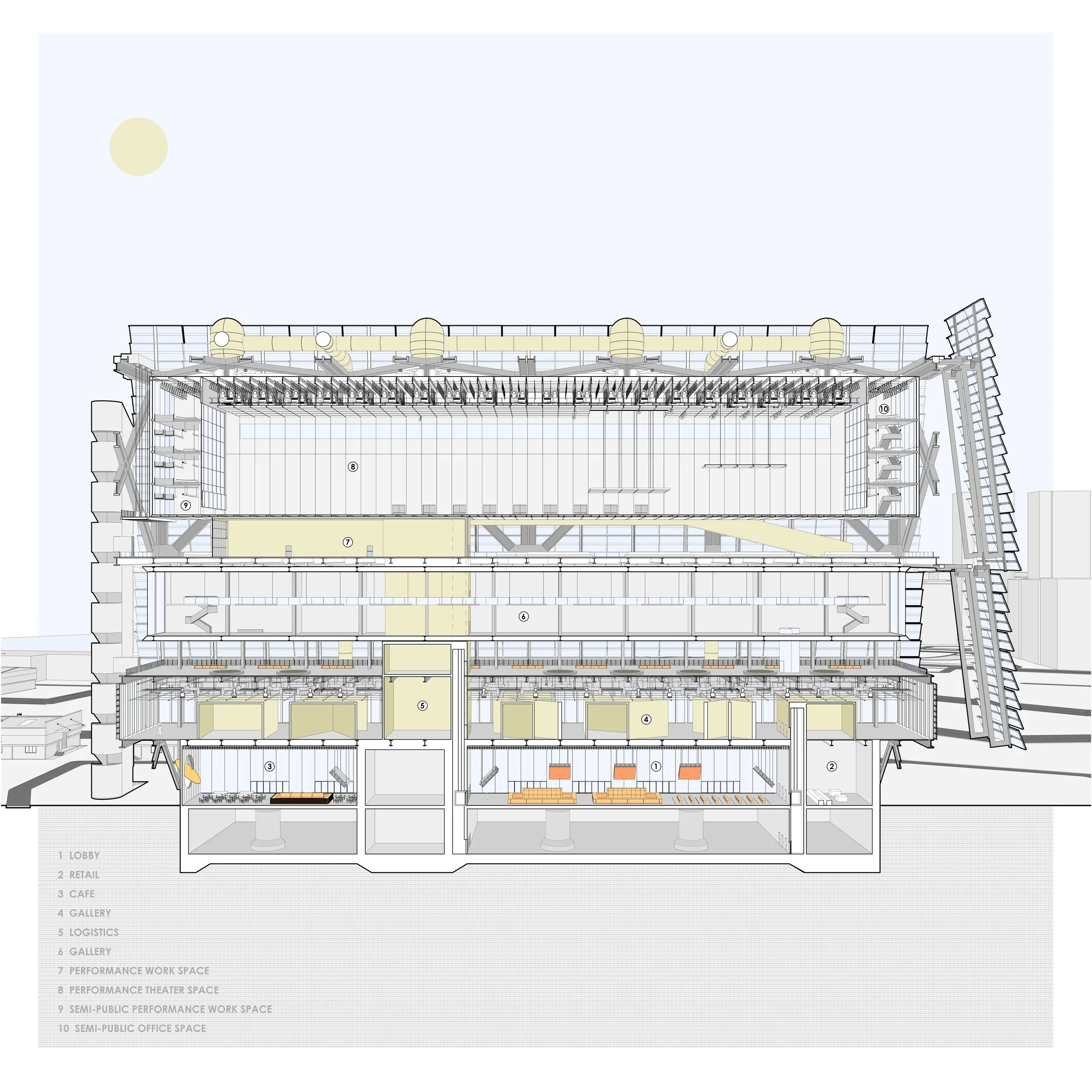

FROM HERE, THE JOURNEY MOVES UP TO LEVEL 2, A FLEXIBLE GALLERY LEVEL WHERE EXHIBITION SPACES ARE INTERLACED WITH INTERNAL PERFORMANCE SPACES HIDDEN WITHIN THICK WALL ASSEMBLIES (SEE SECTION). THESE SPACES ALLOW FOR INTIMATE, IMMERSIVE PERFORMANCES THAT CAN OCCUR IN PARALLEL TO THE MAIN EXHIBITIONS, ENHANCING THE BUILDING’S MULTI-FUNCTIONAL CHARACTER.

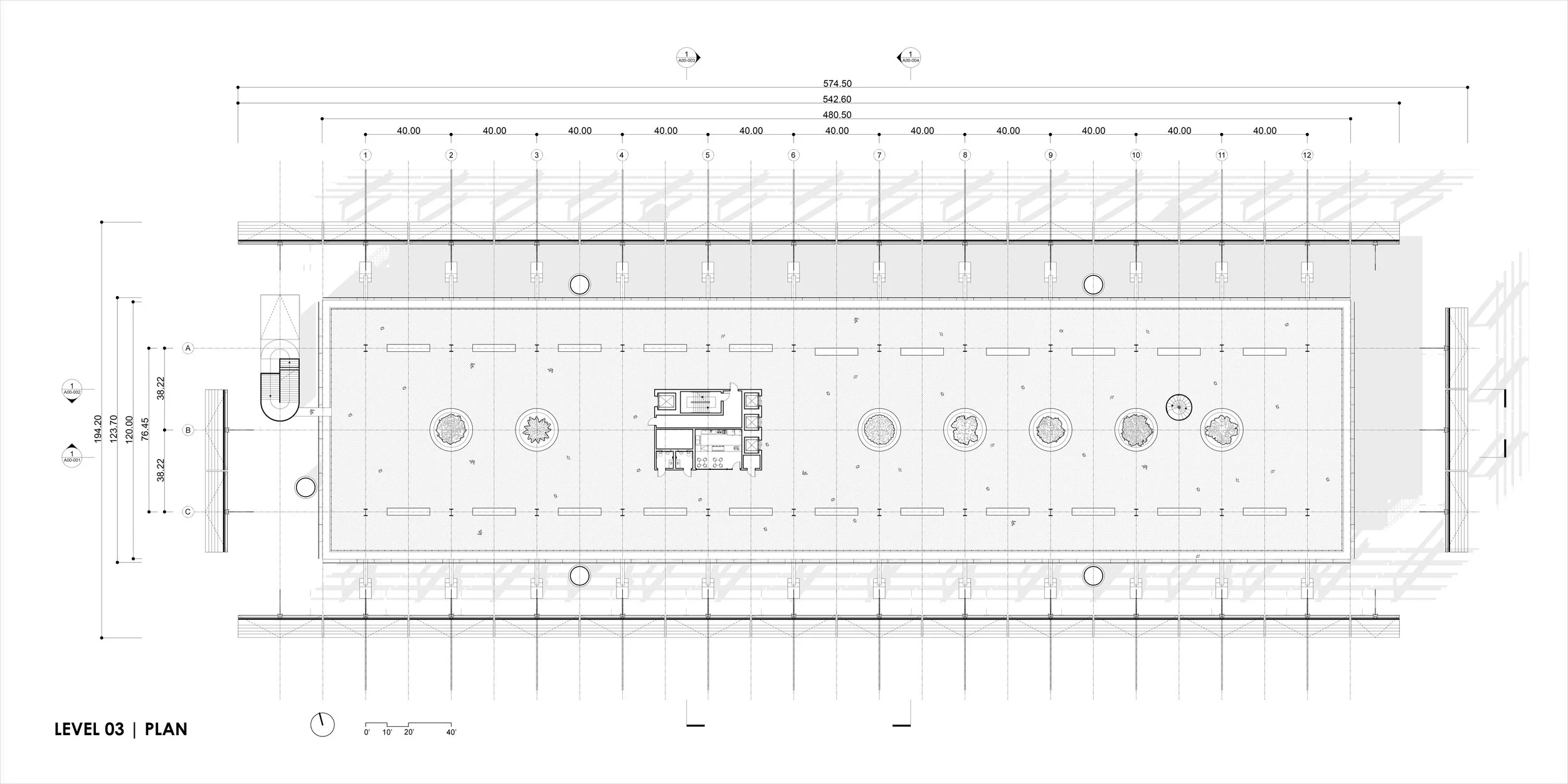

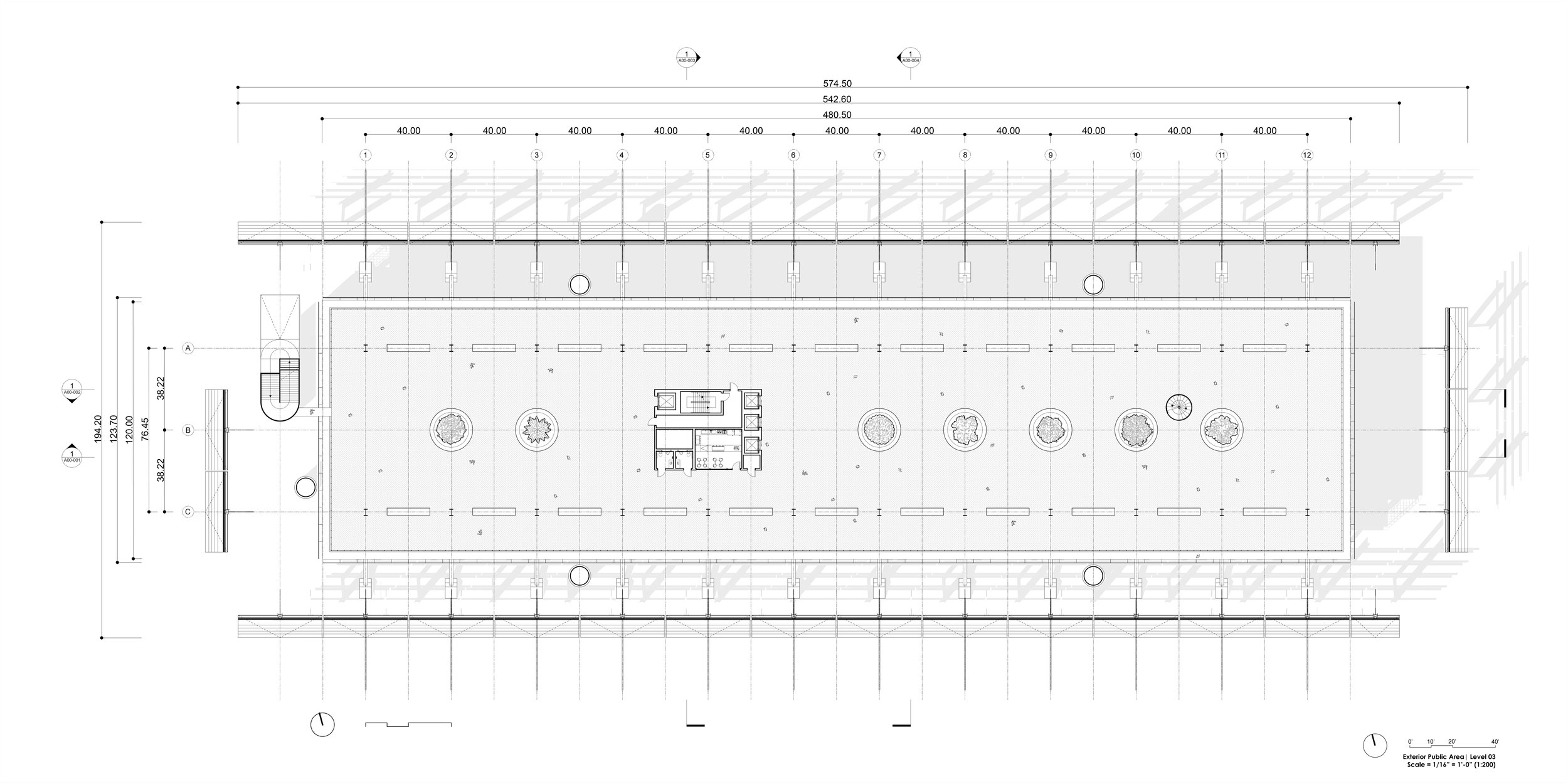

ABOVE, LEVEL 3 OPENS INTO AN OPEN WINTER GARDEN THAT OCCUPIES THE ROOF OF LEVEL 2. THIS LANDSCAPED AND SHELTERED SPACE SERVES AS A SOCIAL INTERVAL WITHIN THE BUILDING, PROVIDING AREAS FOR CASUAL GATHERINGS, SEASONAL INSTALLATIONS, AND INFORMAL EVENTS THROUGHOUT THE YEAR.

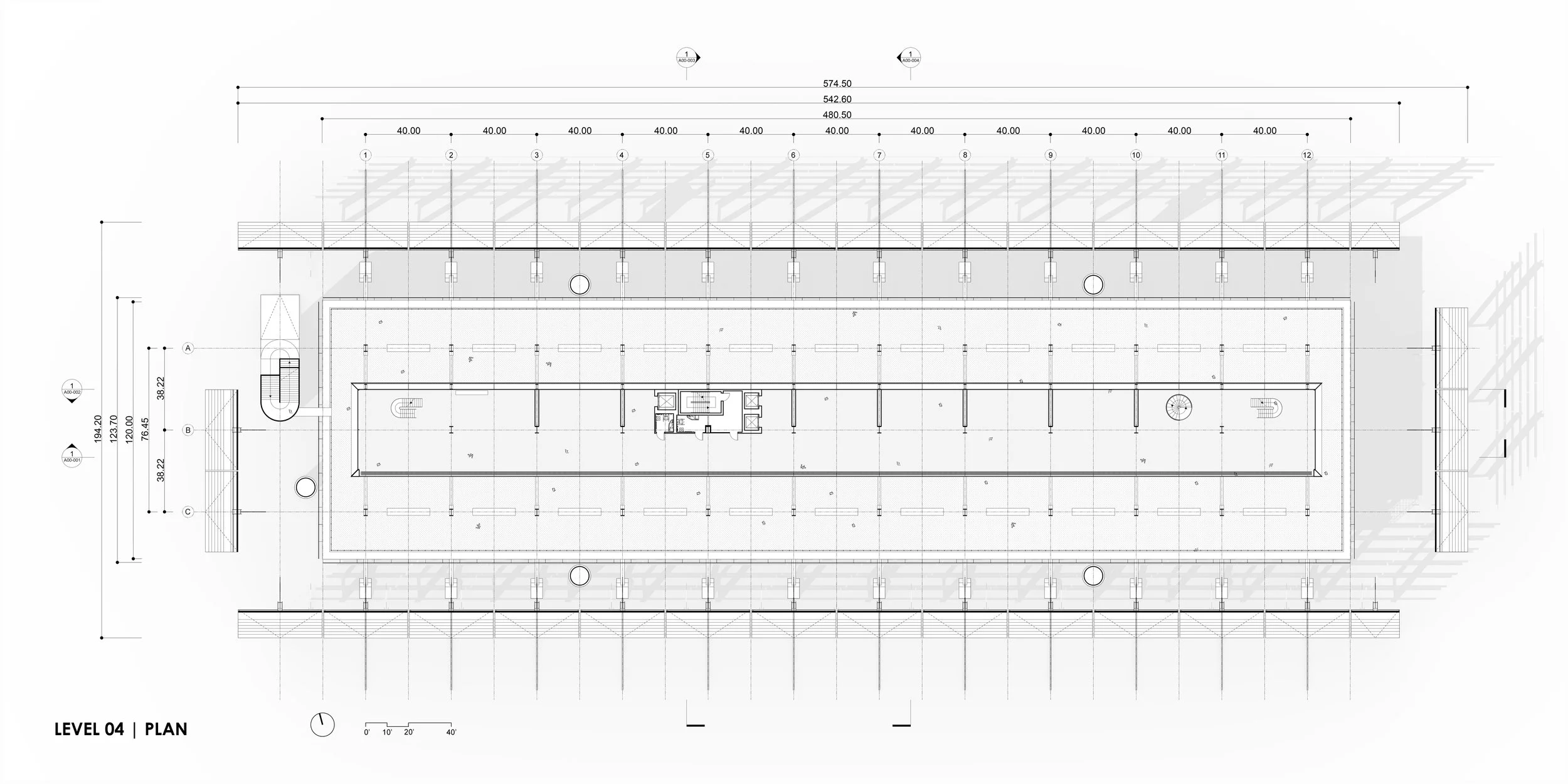

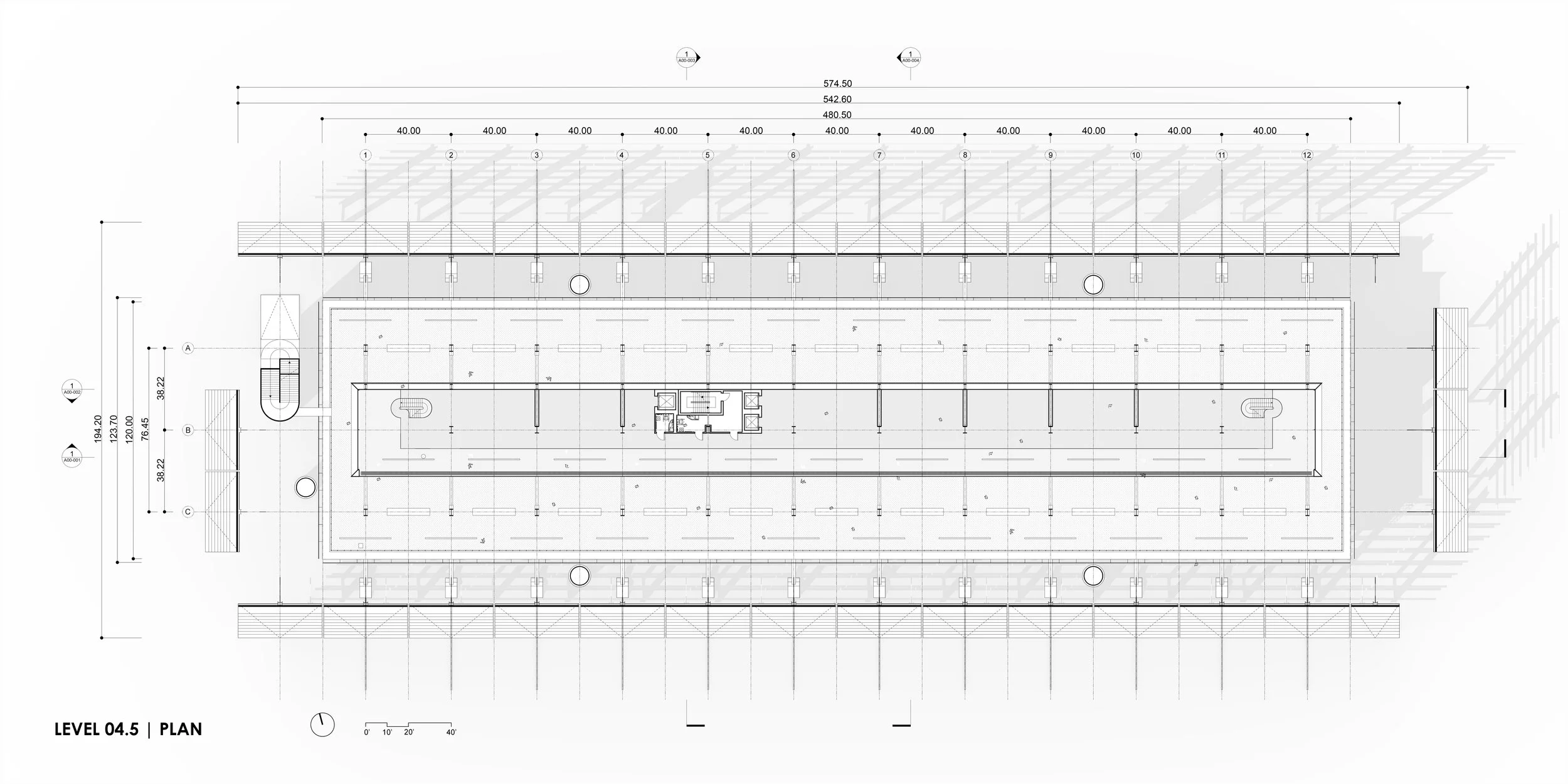

THE VERTICAL ASCENT CONTINUES TO LEVEL 4, WHICH HOUSES THE ICONIC GOLDEN BOX GALLERY SPACE. THIS DOUBLE-HEIGHT VOLUME IS SUSPENDED WITHIN THE STRUCTURAL FRAME AND DESIGNED FOR LARGE-SCALE ART INSTALLATIONS, MAJOR TEMPORARY EXHIBITIONS, AND THEATRICAL PRODUCTIONS. ITS DISTINCT COLOR AND FORM MAKE IT A VISUAL ANCHOR BOTH INSIDE AND OUTSIDE THE BUILDING.

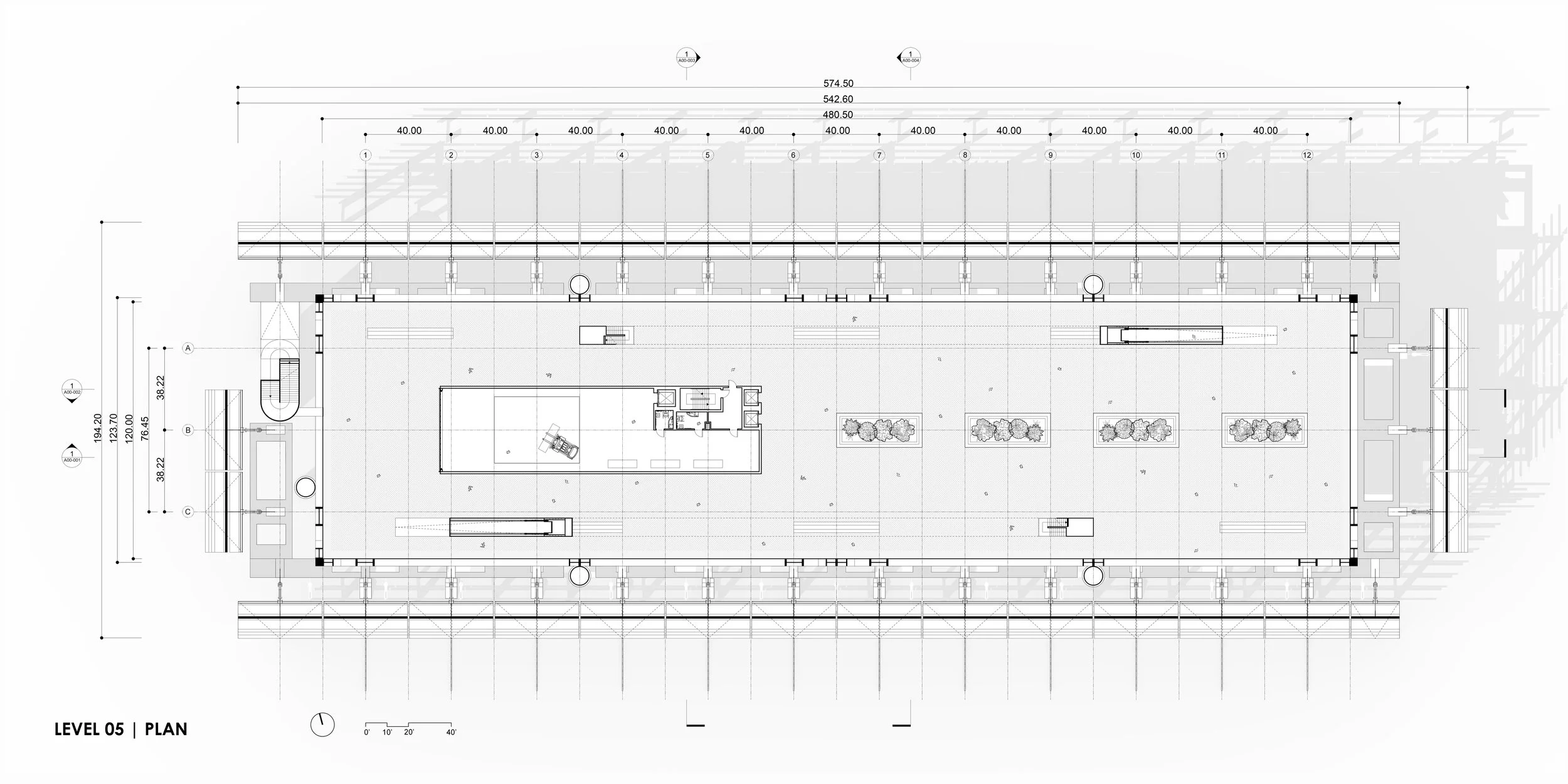

LEVEL 5 REINTRODUCES THE THEME OF LANDSCAPE WITH ANOTHER OPEN WINTER GARDEN ON THE ROOF OF THE GOLDEN BOX. THIS ELEVATED OUTDOOR SPACE OFFERS DRAMATIC VIEWS OF THE SURROUNDING CONTEXT AND FUNCTIONS AS A VENUE FOR RECEPTIONS, SMALL CONCERTS, AND PERFORMANCE INTERMISSIONS.
CROWNING THE BUILDING IS LEVEL 6, A FULLY GLAZED PERFORMANCE BOX EQUIPPED WITH MOVABLE PLATFORMS. THIS LEVEL ENABLES A WIDE RANGE OF PERFORMANCE FORMATS, FROM CONVENTIONAL STAGE PRODUCTIONS TO EXPERIMENTAL, IMMERSIVE THEATER. THE TRANSLUCENT FROSTED GLAZING CREATES A SOFT, DIFFUSED LIGHT INSIDE WHILE OBSCURING DIRECT VIEWS, TURNING THE PERFORMANCE INTO A SILHOUETTED SPECTACLE AGAINST THE SKY. THE EFFECT MAINTAINS PRIVACY FOR PERFORMERS WHILE STILL ANNOUNCING THE PRESENCE OF ACTIVITY TO THE SURROUNDING CITYSCAPE.
BELOW GRADE, THE BASEMENT LEVEL PROVIDES SECURED PARKING AND DIRECT SERVICE ACCESS, ENSURING THAT EXHIBITION AND PERFORMANCE LOGISTICS OPERATE SEAMLESSLY WITHOUT DISRUPTING THE PUBLIC EXPERIENCE ABOVE.
TECHNICAL SYSTEMS + CONSTRUCTION

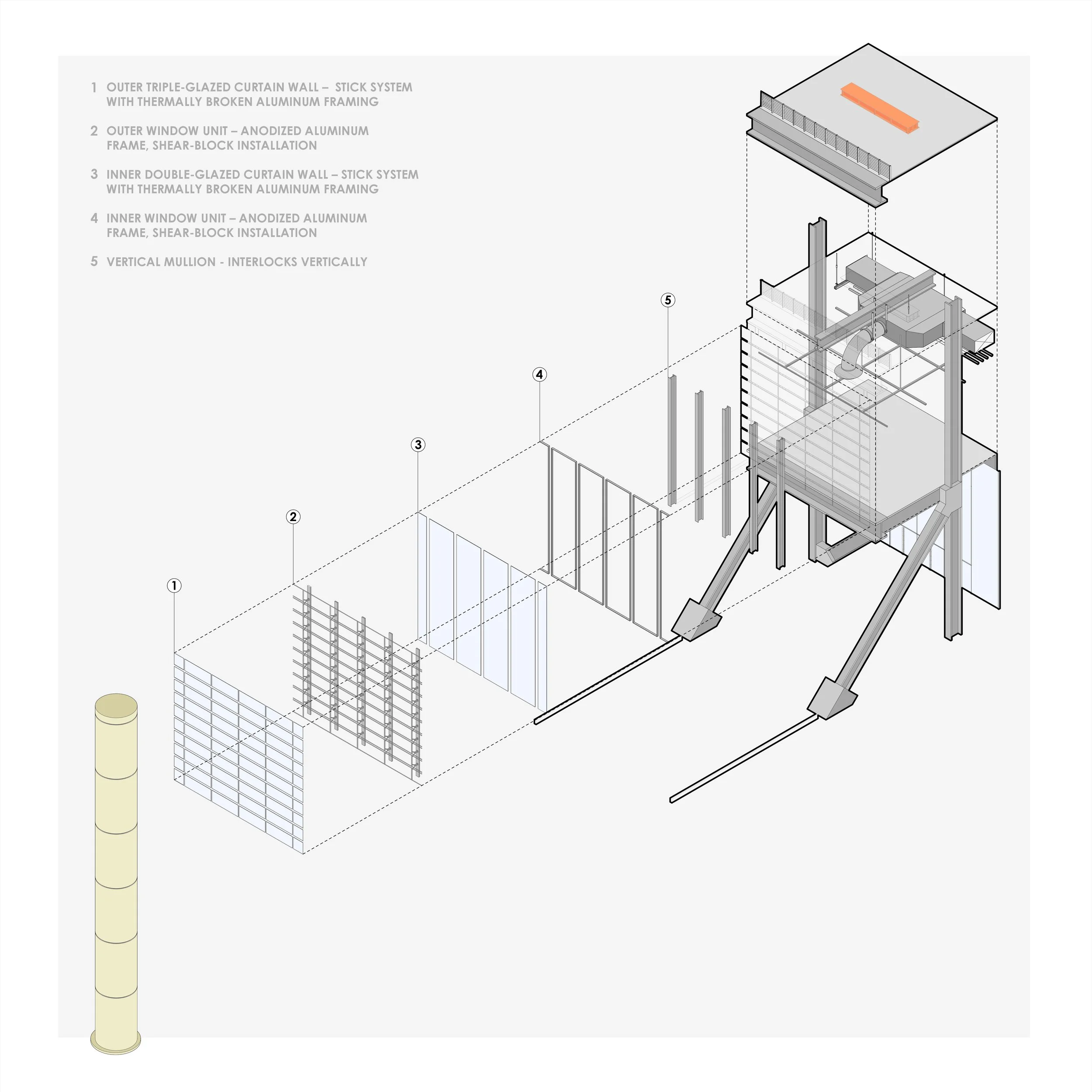

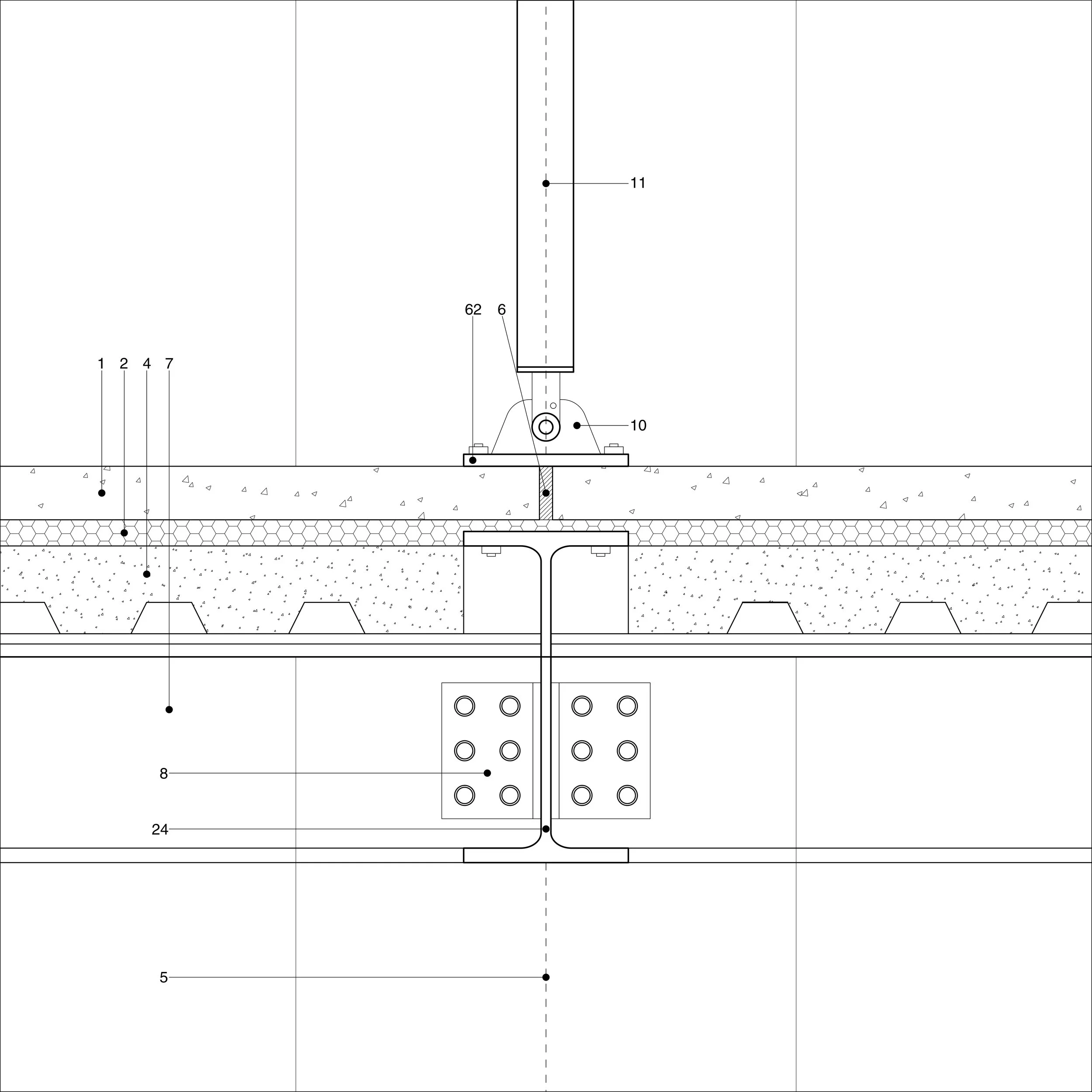

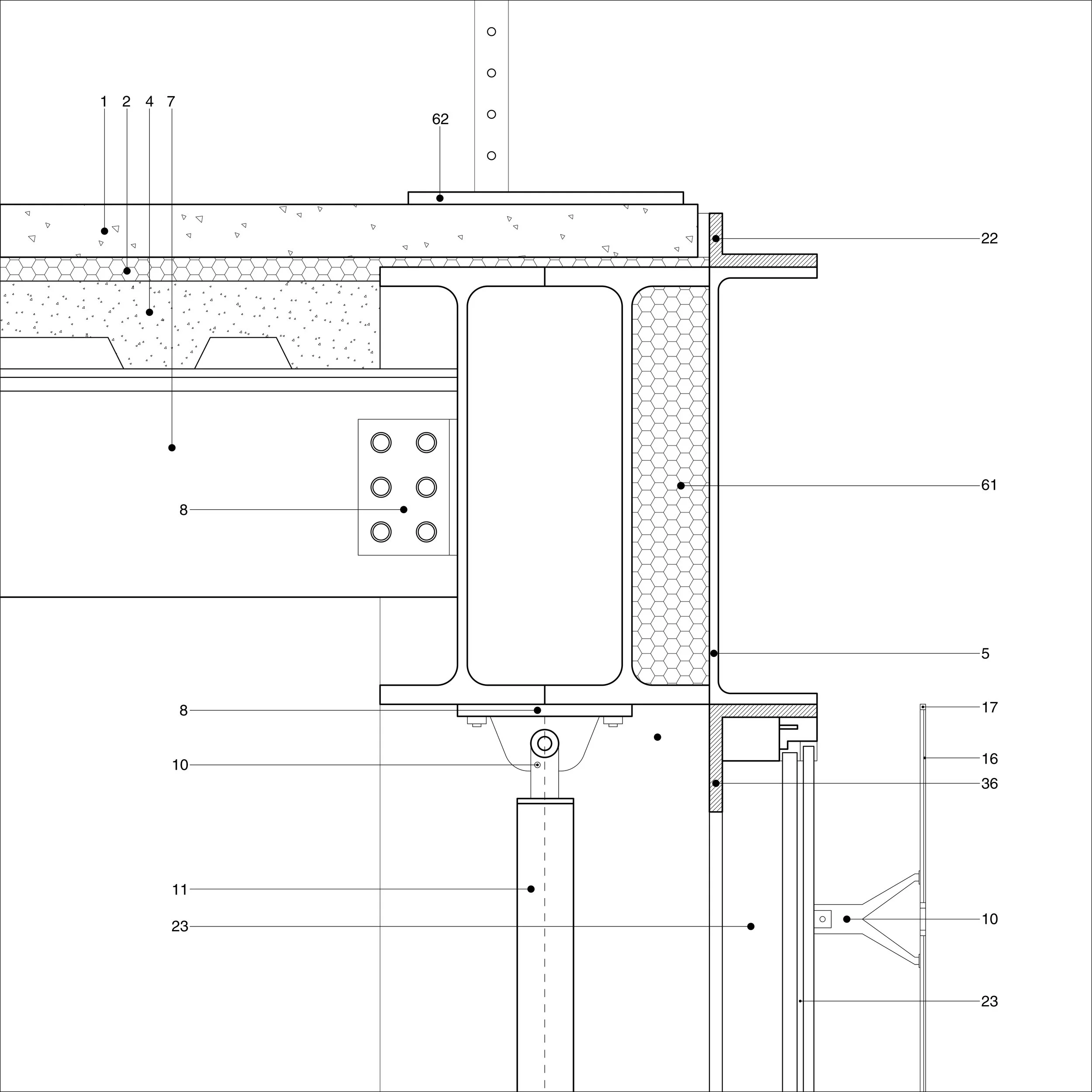

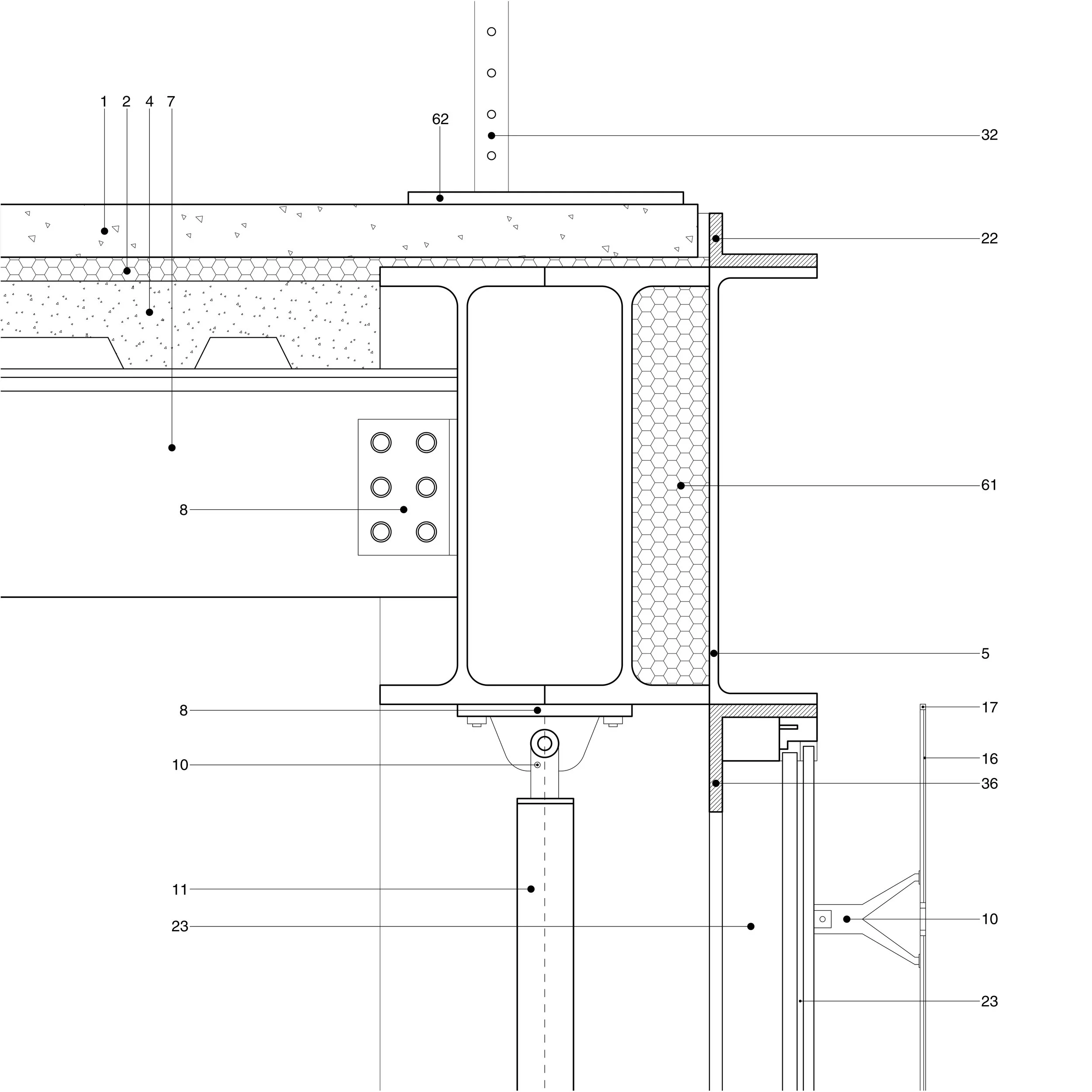

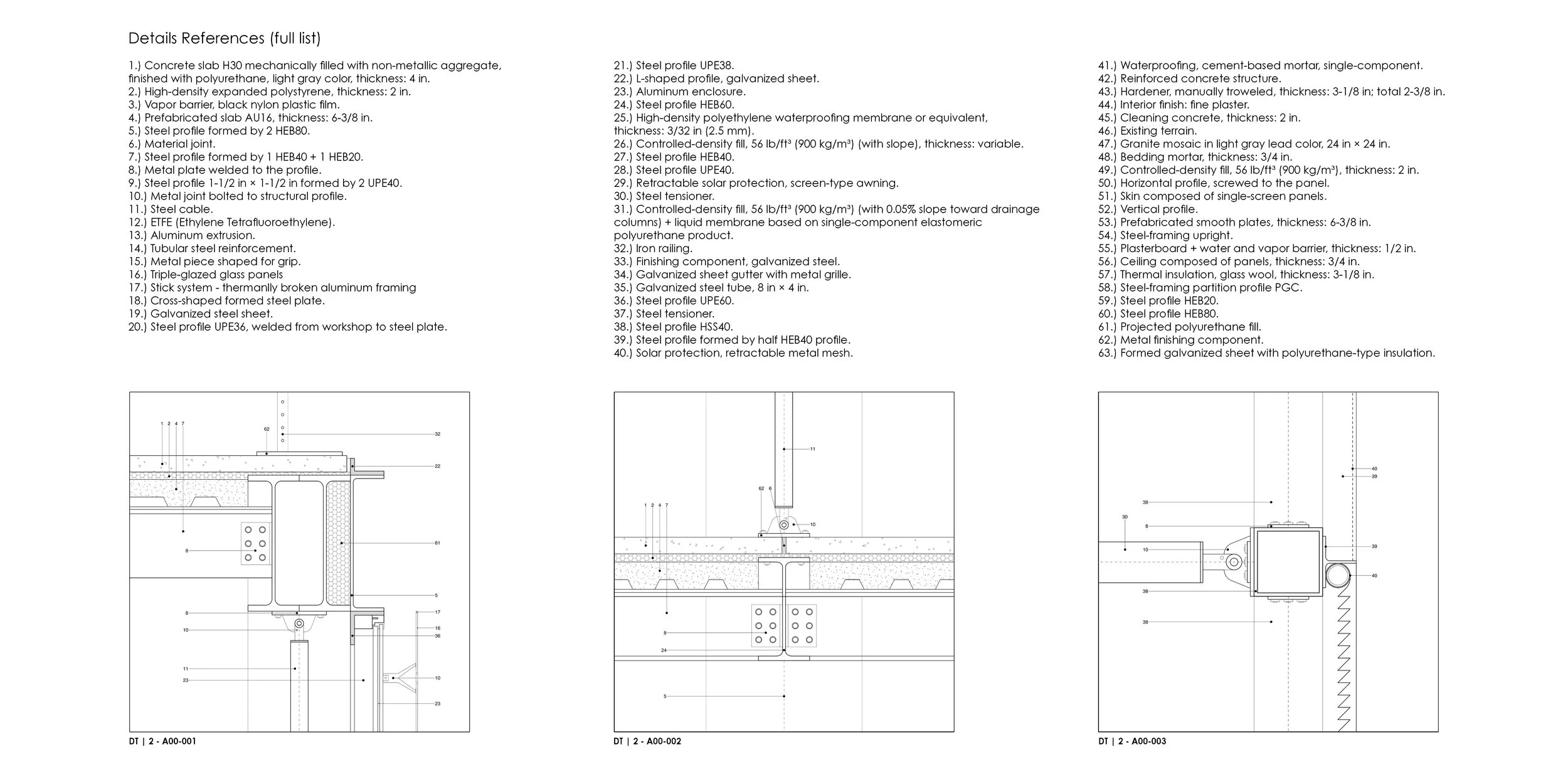

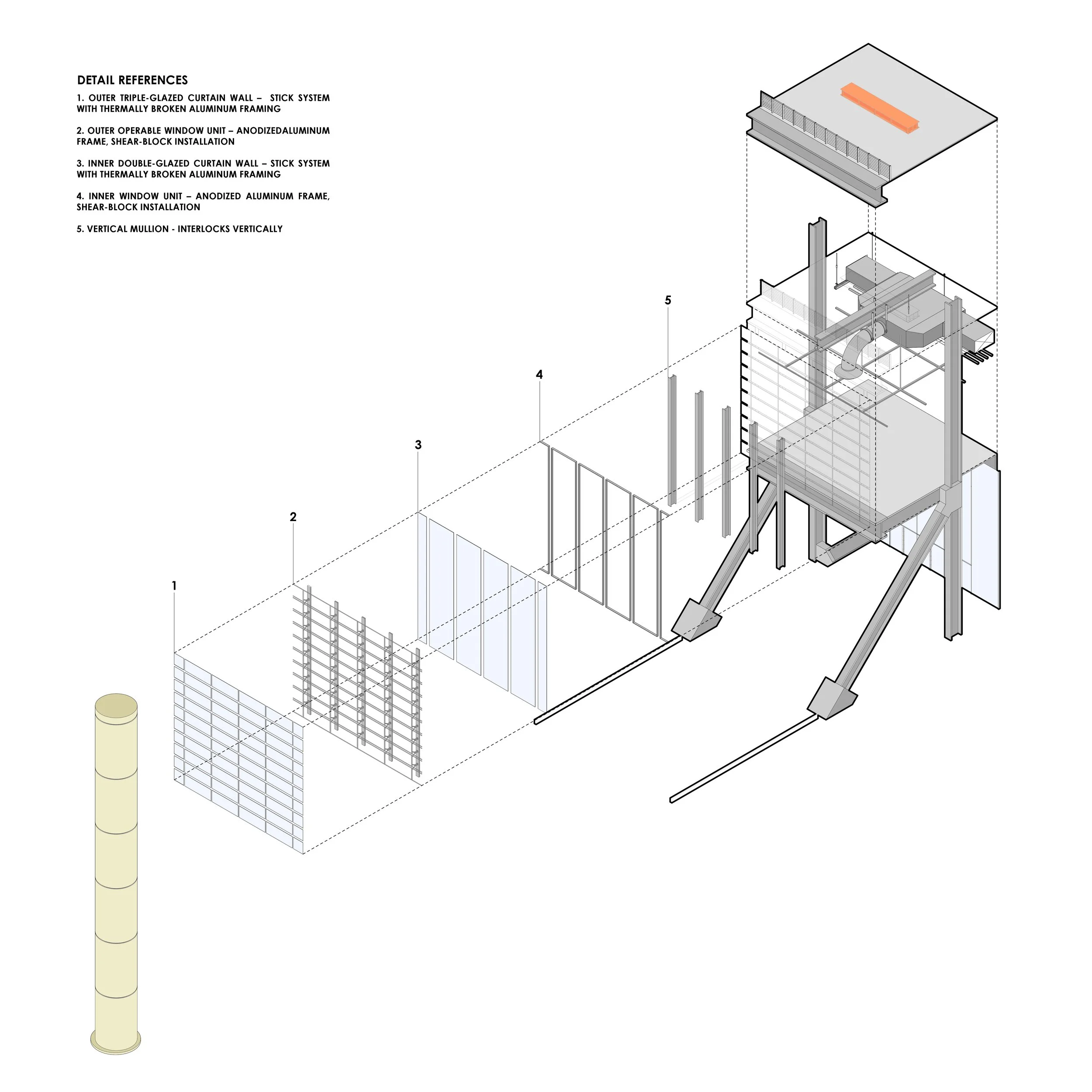

THE CENTER IS BUILT UPON A PRIMARY STEEL SPACE FRAME SYSTEM WITH CROSS-BRACING TO PROVIDE LATERAL STABILITY, ANCHORED BY REINFORCED CONCRETE CORES CONTAINING VERTICAL CIRCULATION AND MECHANICAL RISERS. THE FAÇADE EMPLOYS A DOUBLE-SKIN GLAZING SYSTEM WITH LOW-E LAMINATED SAFETY GLASS, OPTIMIZING THERMAL INSULATION, SOLAR CONTROL, AND ACOUSTIC PERFORMANCE.

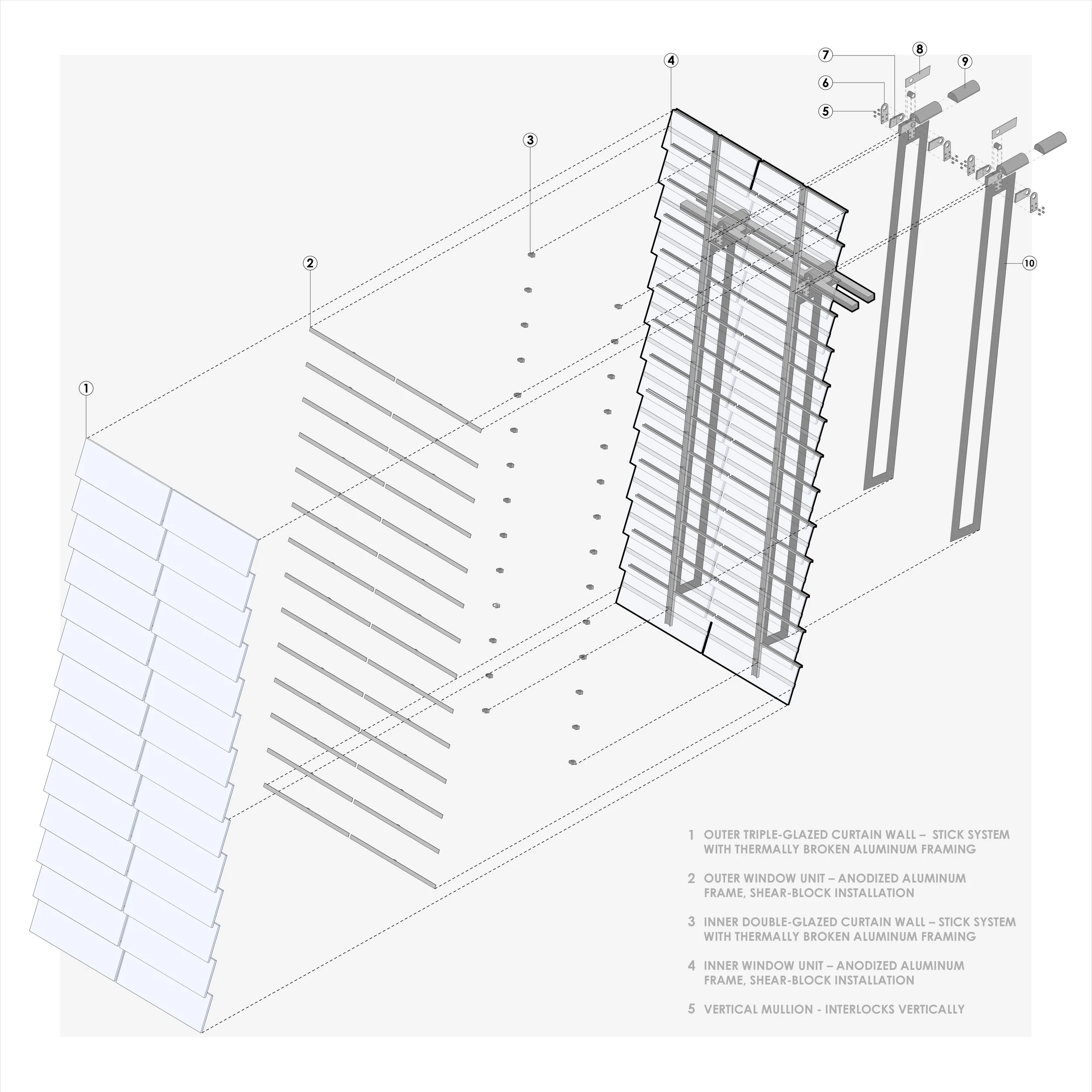

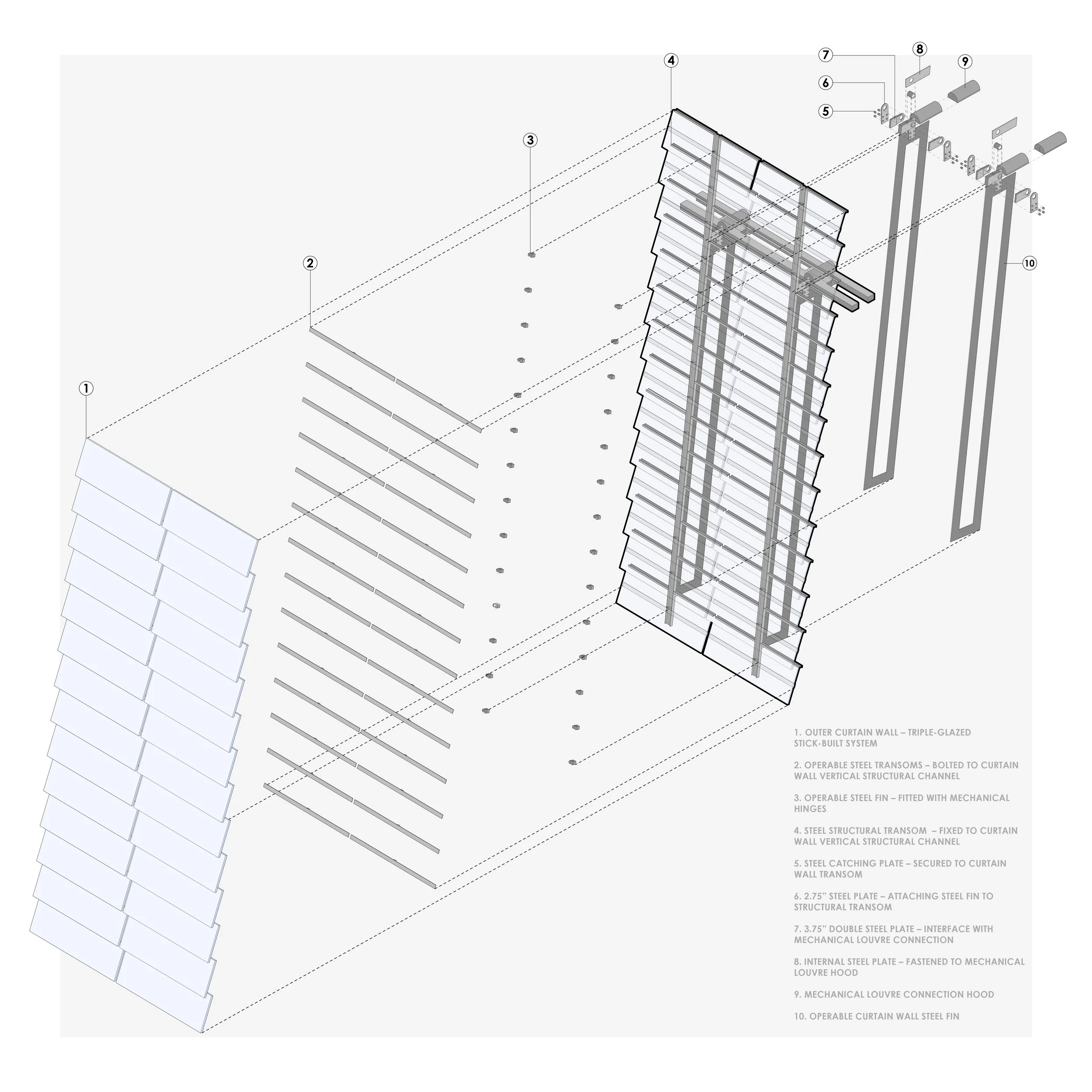

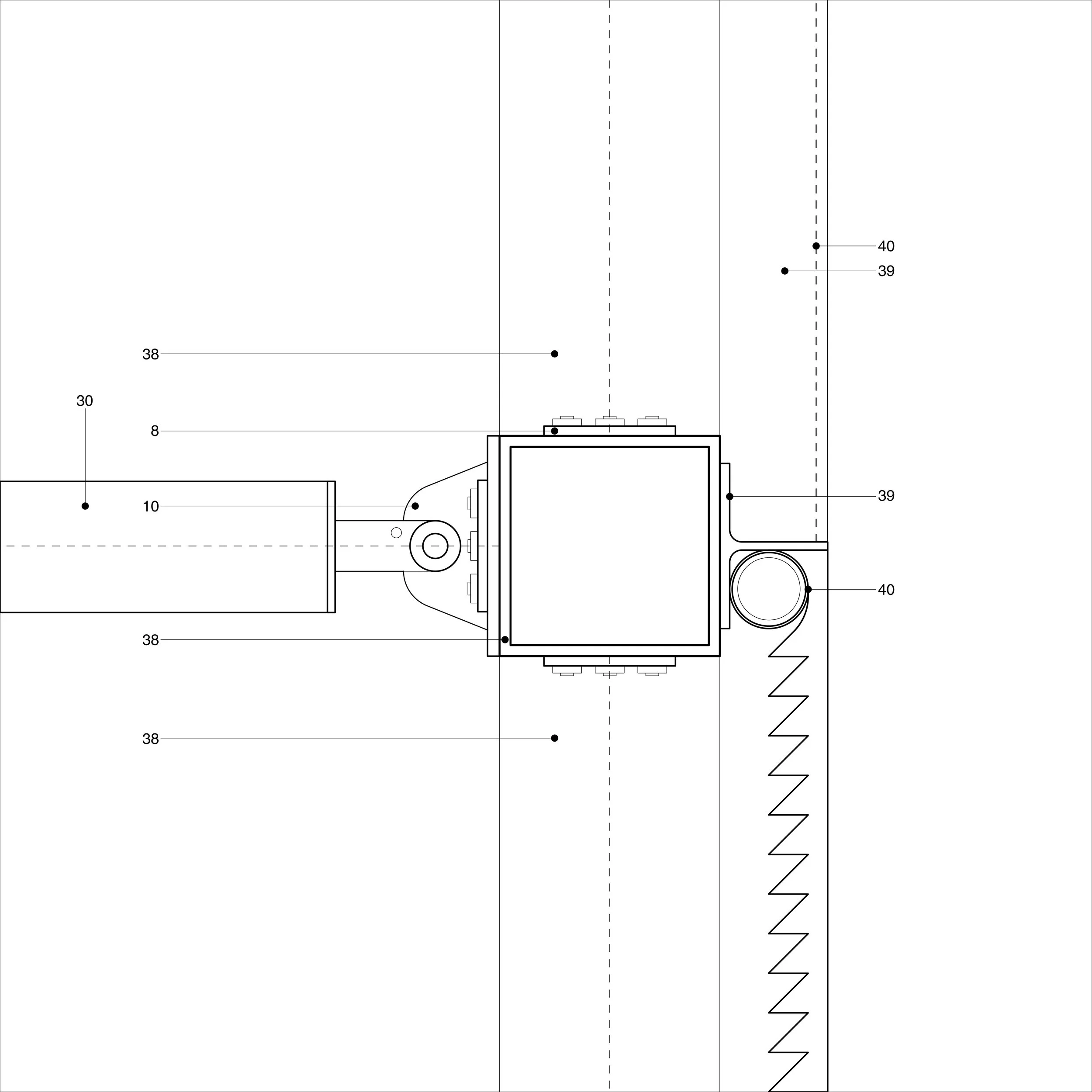

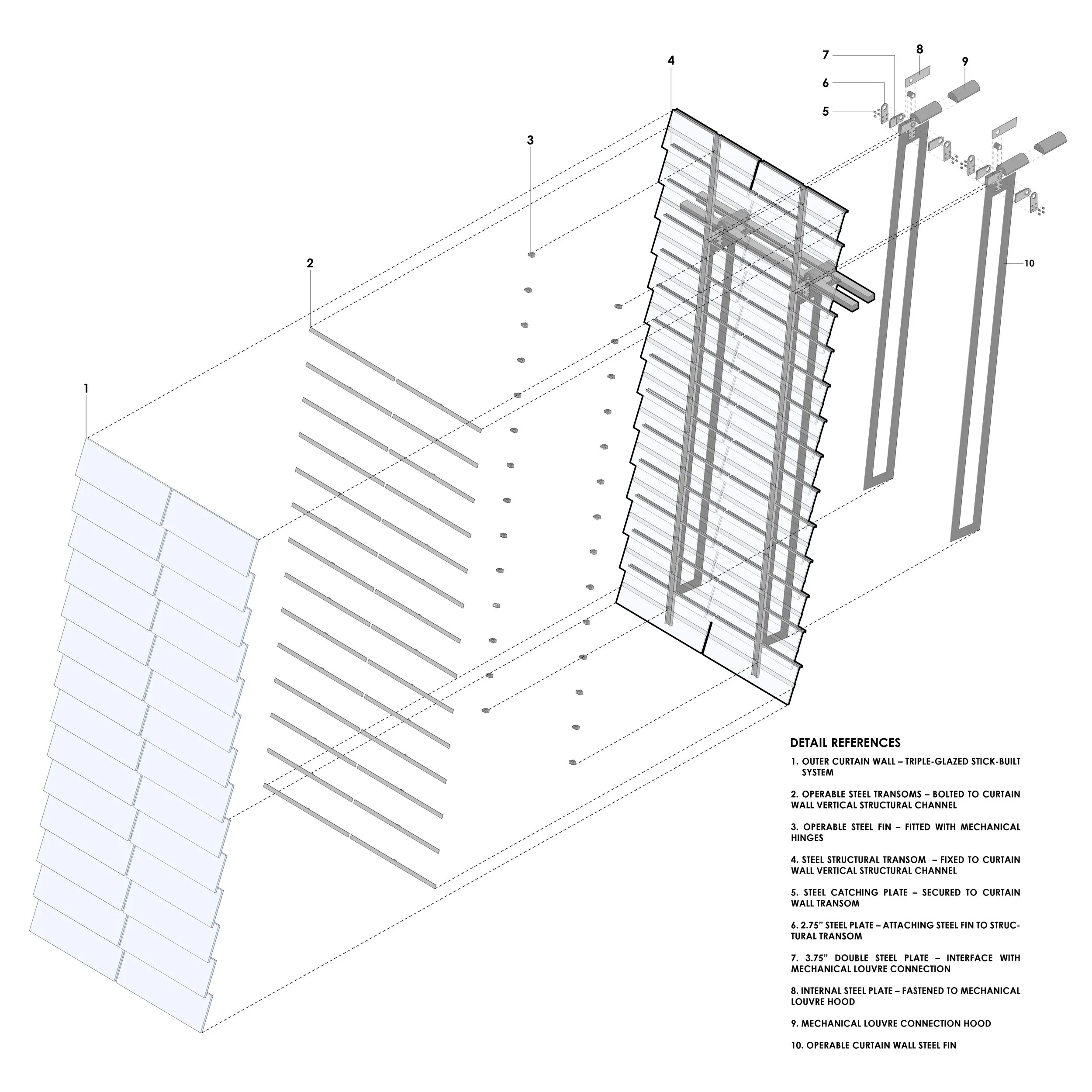

SUNLIGHT REGULATION IS ACHIEVED THROUGH OPERABLE GLASS LOUVERS SET WITHIN ANODIZED ALUMINUM FRAMES, PROGRAMMED TO ADJUST IN RESPONSE TO SEASONAL SUN ANGLES AND INTERIOR LIGHTING NEEDS. THE BUILDING ENVELOPE COMBINES INSULATED SPANDREL PANELS, TRIPLE-WEATHER SEALS, AND ARGON-FILLED GLAZING CAVITIES TO DELIVER EXCEPTIONAL THERMAL PERFORMANCE.
ENVIRONMENTAL SYSTEMS INCLUDE A VARIABLE AIR VOLUME (VAV) HVAC NETWORK, UNDERFLOOR AIR DISTRIBUTION IN SELECT PERFORMANCE SPACES, AND A HEAT RECOVERY VENTILATION (HRV) SYSTEM FOR ENERGY EFFICIENCY. RAINWATER HARVESTING AND GREYWATER RECYCLING REDUCE POTABLE WATER USE, WHILE PHOTOVOLTAIC ARRAYS AND BATTERY STORAGE PROVIDE ON-SITE RENEWABLE ENERGY GENERATION.
INTERIOR FINISHES BALANCE DURABILITY WITH ACOUSTICAL PERFORMANCE, COMBINING POLISHED CONCRETE FLOORING, ACOUSTIC WOOD PANELING, AND POWDER-COATED METAL ELEMENTS. CIRCULATION ROUTES ARE OVERSIZED TO ACCOMMODATE THE MOVEMENT OF LARGE SET PIECES, EQUIPMENT, AND PUBLIC CROWDS, REINFORCING THE BUILDING’S FLEXIBLE, INDUSTRIAL CHARACTER.
BROOKLYN NAVY YARD: FROM ENCLOSURE TO PERMEABILITY
PHASE I: NAVAL POWER
A closed system. Dry docks, slipways, and cranes defined circulation. The Yard was an enclave of war production, its routes directed only toward the East River.
PHASE II: INDUSTRIAL FRAGMENTATION
After the Navy’s departure in 1966, production dispersed. Garments, food, and small fabrication colonized the empty sheds. Rail lines gave way to trucks. Circulation became fragmented, patchwork, improvised.
PHASE III: ADAPTIVE REUSE
By the 2000s, innovation industries arrived. Film studios, design workshops, and vertical food halls inserted themselves into the old frameworks. Historic structures were not erased but re-coded. Circulation was reorganized, flexible, and networked.
PHASE IV: CULTURAL INTEGRATION
Now the Yard opens outward. The Cultural Center inserts permeability into a historically closed site. Production expands again—from ships to goods to ideas to culture. A civic layer is superimposed onto the industrial palimpsest.
THE SITE PLAN AS HISTORY
Each phase is mapped through its circulations. First rail and river, then trucks and fragmentation, now public paths and cultural flows. Routes that once served industry alone are redrawn as civic corridors.
The Cultural Center completes the sequence. The enclave becomes a city fragment. The fortress becomes porous. Production becomes cultural.
